Hot Aisle Containment
Hot Aisle Containment
Every data center faces the challenge of efficiently removing heat from high-performance IT equipment while controlling operational costs. Hot Aisle Containment (HAC) systems address thisthrough intelligent thermal management that optimizes facility airflow patterns. HAC systems create dedicated pathways that capture heated air at its source and deliver it directly to your cooling units, preventing hot exhaust air from mixing with conditioned supply air. This targeted approach transforms cooling efficiency while creating more predictable operating environments for critical equipment.
The modular framework integrates seamlessly into existing infrastructure without requiring major facility overhauls. Most installations can be completed with minimal disruption to active operations, delivering immediate energy optimization benefits.
PRODUCT RESOURCES
Information & Downloads
- Specification Sheet
- Catalogue
- Similar Products
Product Drawings

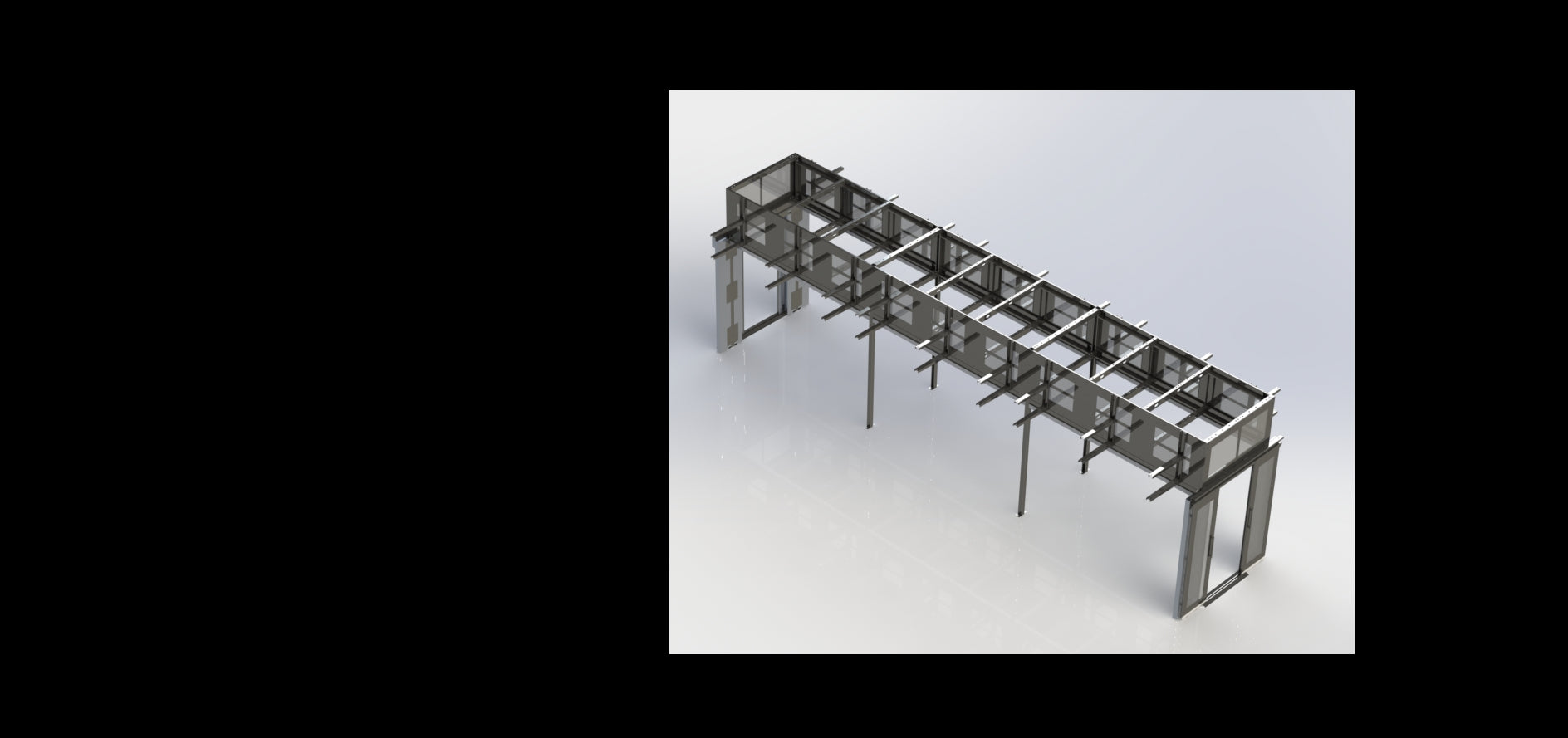

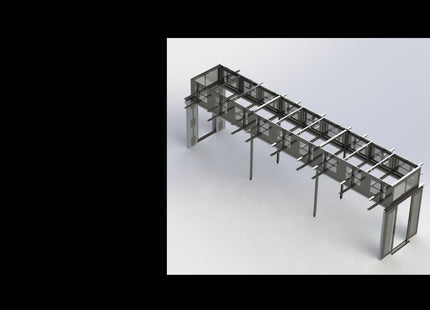

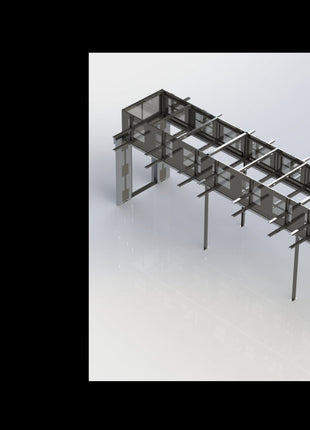

- Rendering
- BIM
Communications
KEY FEATURES
Advanced Thermal Management
- Complete hot/cold air separation for enhanced cooling efficiency
- Direct hot air return to cooling units via overhead plenum integration
- Eliminates energy-wasting air mixing and thermal hot spots
Modular Construction System
- Steel framework assembly with standard hardware requirements
- Custom-engineered components built to your specific requirements
- Scalable design for future facility expansion needs
Universal Infrastructure
Compatibility
- Compatible with raised floor and concrete slab environments
- Integrates with existing HVAC and cooling systems
- Designed for installation around active equipment configurations
Technical Specifications
TECHNICAL SPECIFICATIONS
Construction Materials
- Framework: Precision-engineered steel extrusion system
- Assembly: Modular components with standard fastening methods
- Surface Finish: Durable powder-coated or anodized options
System Compatibility
- Rack Support: Custom configurations built to meet your facility requirements
- Floor Integration: Raised floor and concrete slab environments
- HVAC Integration: Compatible with all major CRAC/CRAH cooling units
- Standard Configurations: Aisle widths of 4', 6', or 8' with heights of 10' or greater to accommodate your room design
Installation Parameters
- Modular components designed for systematic assembly
- Custom engineering ensures optimal fit for your specific environment
- Professional installation recommended for optimal performance and safety compliance
