Series 4000 – Side Venting

Series 4000 – Side Venting

Product form

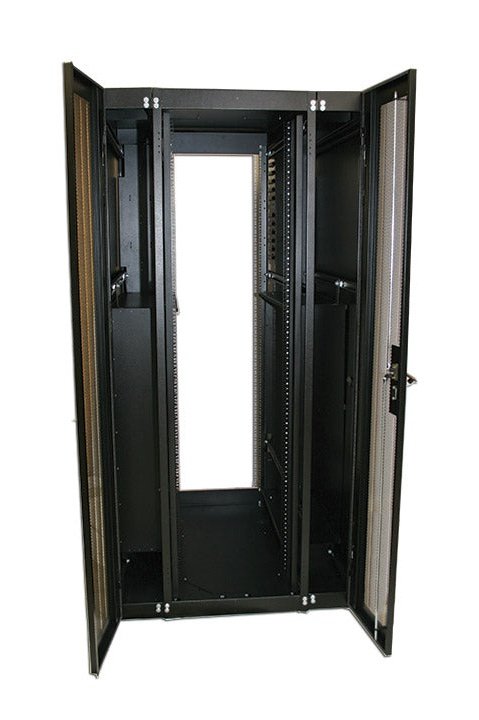

  • The Series 4000 Side Venting Cabinet was designed for use with the Cisco 7018 Switch and other side venting IT Equipment. A scalable enclosure line designed to expand and adapt to your demanding network requirements. Whether you require additional cooling (up to 25kW), power, cable management or depth, the Series 4000 line was designed to grow with your requirements, saving costs and downtime. Buy a kit or customize your own.



    Icon for groupContact Form

    Electron Metal maintains a manufacturing plant, which houses state-of-the-art facilities for sheet metal production, fabrication, finishing and coating. Our head office is located just north of Montréal, in Laval, Québec.

    Send us a message!

    Icon for help_callCall our Sales Department
    Icon for emailEmail our Sales Department
    Icon for barcodeAvailable Sizes

    *Dimensions shown in inches* Width x RU x Depth (AxCxB)

    Option 1: Perforated front and rear doors for standard hot aisle/cold aisle deployment.

    PDF Rendering BIM Overall Dimension Usable Dimension
    CBSKPD-214448 40x83x48 21x44x446.75


    Option 2: Perforated front doors and solid rear doors with hot air chimney deployment.

    PDF Rendering BIM Dimensions
    EXHCHI-372414-BK 40W x 24H x 14D Adjust. Height
    Icon for verifiedFeatures
    • Fully welded 14 ga. Cold Rolled Steel construction with 10 year Warranty
    • Fully assembled and ready to use (or in 3 pre-assembled pieces if required)
    • 40” standard width with custom width options
    • Perforated Split or Solid doors depending on thermal cooling strategy
    • Solid side panels
    • Optional chimney
    • 10 cable entry points and large Thermal Chimney cut-out
    • Wide variety of cable management options (High density managers standard)
    • Size 44 RU, Depth 48”
    • 19” adjustable mounting rails, tapped or Cage nut styles
    • Optional power & thermal solutions
    • Load capacity of 2000 lbs
    • Many other accessories available
